Spare Parts

Clean Gas Heater - High Flow

Application:

High-temperature heating of inert gases such as air, Nitrogen, and Argon.
Removal of residual moisture after drying and cleaning.

Feature:

The "high-flow gas heater" can be directly connected to the piping.
It is an inline-type heater.
Compact design is achieved by bending the sheath heater into complex shapes.

Clean Gas Heater - High Flow

Clean Gas Heater Mini (CLM Series)

Application

The Mini gas heater combine with Clean Hot and fine-diameter sheathed technology.
High-temperature heating of inert gases such as air, Nitrogen, and Argon.
Removal of moisture after drying and cleaning.

Feature

Miniaturize the Clean Hot without insulation materials requirement.
Clean and impurity-free.
The outlet temperature can reach up to 500°C (with a flow rate of 1-40 L/min).
Compact size, palm-sized, approximately 350g weight.

Clean Gas Heater Mini (CLM Series)

Clean Gas Heater

Application:

High-temperature heating of inert gases such as air, Nitrogen, and Argon.
Removal of residual moisture after drying and cleaning.

Feature:

Highly efficiency heat and rapid temperature rise due to the special structure designed.
No insulation materials needed since the low heat loss.
he outlet temperature can reach up to 500°C (depending on the model and flow rate).
The both of the compact design and affordable price by heater bending technology from SHINNETSU industry

Clean Gas Heater

Inner heater installation

The inner heater is designed to keep gas pipes heated and prevent by-product clogging.
It utilizes a coil-based direct heating method and is installed on the inner pipes.
This not only effectively prevents blockages but also improves equipment efficiency
by up to 50% while reducing power consumption.

Inner heater installation

PC-CLAD

PILLAR PC-CLAD series are CCL which consist of mainly PTFE, lowest Dk and Df of all the resin used for PCB material.
These products are suitable for mm-wave application and hi-speed digital application and enables designers to realize excellent characteristics at mm-wave.
- Reprezentative typical data
- Dk : 2.2 to 3.0
- Df : 0.0004 to 0.0024
- Reccomended application:
- mm-wave Radar
- Wireless base station (such as 5G and 6G)
- Hi-speed digital

PC-CLAD

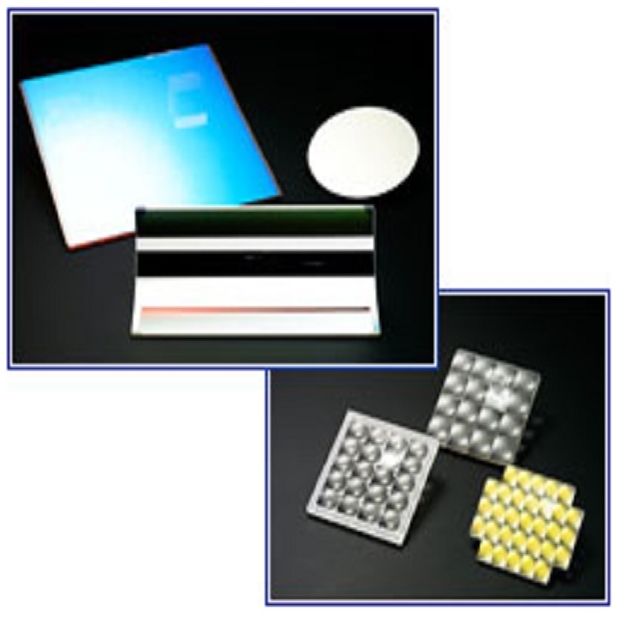

Plane Surface Mirror & Lens

We are also able to design and manufacture Plane surface Mirror & Lens.
※All kinds of coating such as Al, CM, UV can be applied on the Plane surface Mirror

Plane Surface Mirror & Lens

Parabolic Mirrors

The parabolic mirror(reflectors) is a result of concentrated effort and experience with high-tech lighting.these products are designed to produce a higily precise collimated beam, the concentration and precision of which has met with increasing favor and demand in the area of efficient wide aperture light concentration mirrors.
Our own coating technique allows for the selective reflection or transmission or rays of particular wave length, ultraviolet and infrared rays.

Parabolic Mirrors

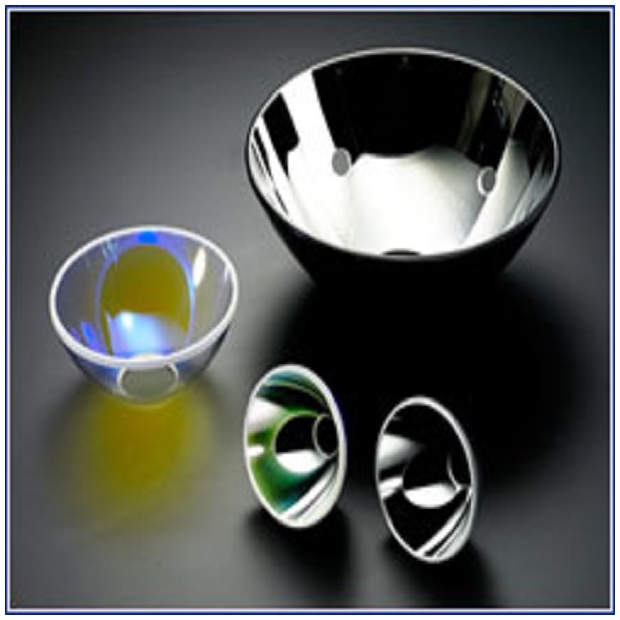

Ellipsoidal Reflectors

The KSE series ellipsoidal mirrors(reflectors) are able to produce a highly afficient ray of light, concentrating more than 90% of the luminous flux of high precision Xenon lamps. Yhese reflectors have no chromatic aberration, oroducing a clear true beam of light. They also have a very higu heat stability and are extremely resistant to breakage.
Tte newly-developed vacuum coating technique has made possible selective reflection or transmission of yays of partiqular wavelength, ultra-violet and infrared rays.
We also feature precies water-cooled metal reflectors developed for high-output lights and compact metal reflectors.

Ellipsoidal Reflectors
