    PC-CLAD

    PILLAR PC-CLAD series are CCL which consist of mainly PTFE, lowest Dk and Df of all the resin used for PCB material.
    These products are suitable for mm-wave application and hi-speed digital application and enables designers to realize excellent characteristics at mm-wave.
    - Reprezentative typical data
          - Dk : 2.2 to 3.0
          - Df : 0.0004 to 0.0024
    - Reccomended application:
          - mm-wave Radar
          - Wireless base station (such as 5G and 6G)
          - Hi-speed digital


  • Read More
    PFAチューブ写真 _1_.jpg

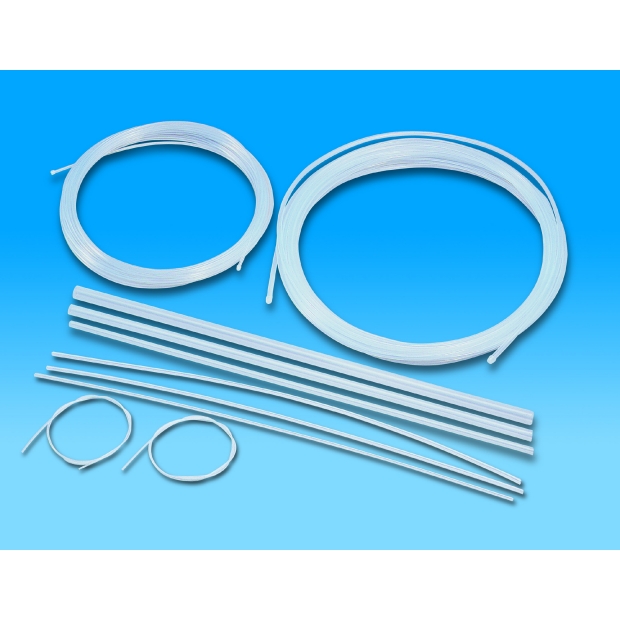

    TUBE

    Super clean tube using new PFA, and is adopted to various liquid and gas supply.
  • Read More
    ANTI-STATIC TUBE COVER.png

    ANTI-STATIC TUBE COVER

    Pillar Aiti-Static Tube Cover offers customer a solution for static electricity. Avoid sparkle by electrostatic shield effect and easy to handle by its special tool.  Low cost by conductive polypropylene and repeatable using.
  • Read More
    クォーツ継手 _1_.jpg

    QUARTZ FITTING

    The Quartz Fittig combines patented Super 300 fitting. Double sealing, high temperature and high pressure ressistance for PFA tubing. A unique ferrule design with security of stopper ring for the quartz. All in one a compact body.
  • Read More
    フレア継手 _1_.jpg

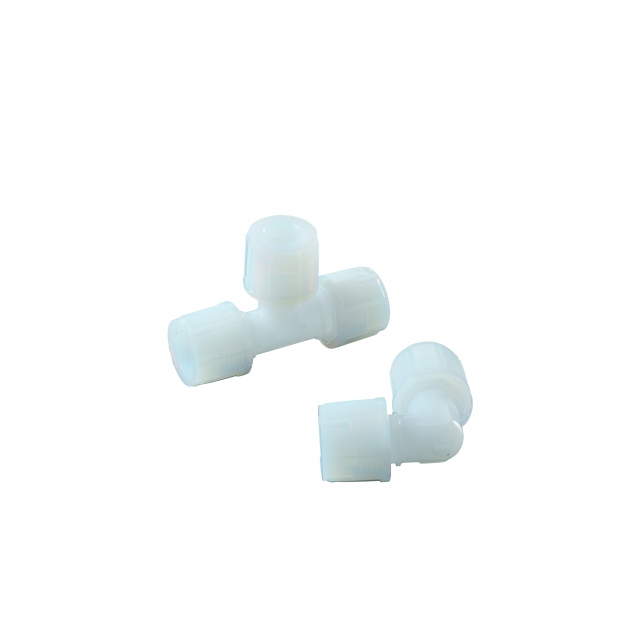

    SUPER FLARE

    Compact body design and structure for Super FLARE style fitting has space-saving, the tube is plugged into the fitting and sealing well.  Easy to work in room temperature without heater gun.
  • Read More
    SUPER TYPE.png

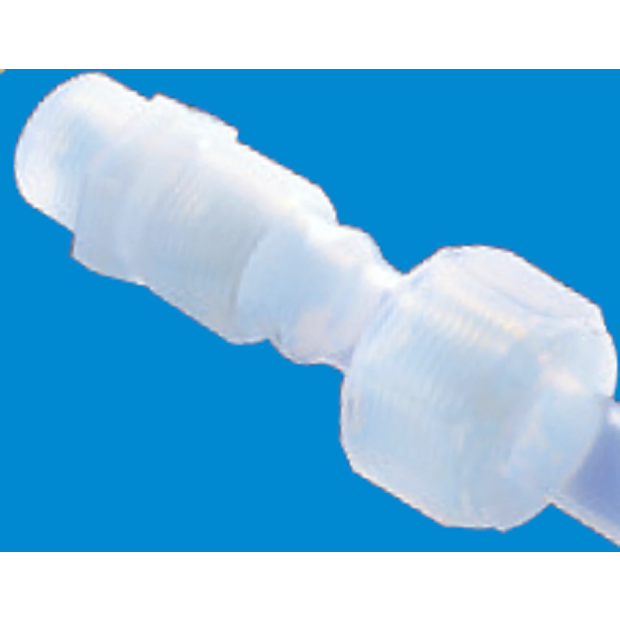

    SUPER TYPE

    Super style fiiting is adopted to high purity and corrosive chemical. Double sealing design is perventing liquid leakeage and has high-sealing performance. Its working temperature is high to max 200 deg,℃ and strength to high pressure, offering safety working envirionment.
  • Read More
    SUPER300 フィッティング _1_.jpg

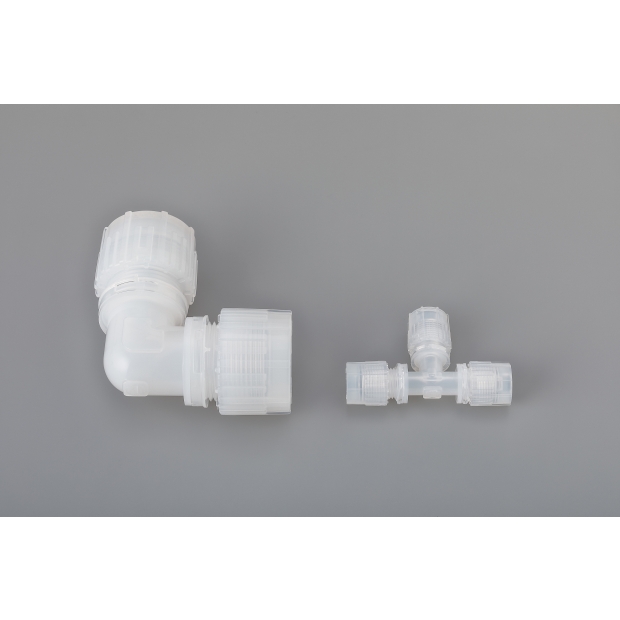

    S300

    Super300 style fitting was enhanced by ''Super style fiiting'' and is adopted to high purity and corrosive chemical. Use unique insertion sleeve design to achieve high-sealing performance. The addition design of "gauge ring" not only secures the union nut more firmly to the fitting body, but also produces an easy way of assembly for users.
